Outdoor Square Inground light 24V 8W 3000K Warm White Die-cast Aluminum body IK Rating 09

Outdoor Square Inground light 24V 8W 3000K Warm White Die-cast Aluminum body IK Rating 09
Outdoor Square Inground light 24V 8W 3000K Warm White Die-cast Aluminum body IK Rating 09 Outdoor Square Inground light 24V 8W 3000K Warm White Die-cast Aluminum body IK Rating 09 Outdoor Square Inground light 24V 8W 3000K Warm White Die-cast Aluminum body IK Rating 09 Outdoor Square Inground light 24V 8W 3000K Warm White Die-cast Aluminum body IK Rating 09 Outdoor Square Inground light 24V 8W 3000K Warm White Die-cast Aluminum body IK Rating 09 Outdoor Square Inground light 24V 8W 3000K Warm White Die-cast Aluminum body IK Rating 09

ภาพใหญ่ :  Outdoor Square Inground light 24V 8W 3000K Warm White Die-cast Aluminum body IK Rating 09

รายละเอียดสินค้า:
สถานที่กำเนิด: กวางตุ้ง, จีน
ชื่อแบรนด์: Joyful Partner
ได้รับการรับรอง: CE, EMC,RoHS
หมายเลขรุ่น: 82842P
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 20 ชิ้น
ราคา: โปร่ง
รายละเอียดการบรรจุ: กล่องกระดาษกันกระแทก
เวลาการส่งมอบ: 5-10 วันทำการ
เงื่อนไขการชำระเงิน: MoneyGram, Western Union, T/T
สามารถในการผลิต: 500,000 กล่อง / กล่องต่อเดือน

Outdoor Square Inground light 24V 8W 3000K Warm White Die-cast Aluminum body IK Rating 09

ลักษณะ
บริการโซลูชั่นแสงสว่าง: การติดตั้งโครงการ เวลาทำงาน (ชั่วโมง): 50,000
น้ำหนักผลิตภัณฑ์ (กก.): 1.5 การรับประกัน(ปี): 2 ปี
แรงดันไฟฟ้าขาเข้า(V): DC24V 12V/AC100-240V CRI (รา>): 85
วัสดุตัวโคมไฟ: สแตนเลส ระดับ IP: IP67, IP67 กันน้ำ
แอปพลิเคชัน: ขั้นบันได ดาดฟ้า เรือ สภาพแวดล้อมที่มีความชื้น กระจก: 8 มิลลิเมตร กระจกกระชับ
OEM และ ODM: มีอยู่ ประสิทธิภาพของเลนส์: ≥85%
คำสำคัญ: ไฟขั้นบันได ไฟดาดฟ้า ไฟบันได โหมดควบคุม: DMX512/ ตามความต้องการ (0-10V/ Triac/ Dali)
การใช้งาน: ตกแต่งภูมิทัศน์สวนกลางแจ้ง ท่าเรือ: กวางโจว/เซินเจิ้น
เน้น:

24V LED underground light

,

die-cast aluminum outdoor light

,

warm white inground light

Outdoor Square Inground Light 24V 8W 3000K Warm White Die-cast Aluminum Body IK Rating 09
Outdoor Square Inground light 24V 8W 3000K Warm White Die-cast Aluminum body IK Rating 09
Item No. Light Source Lens Beam Angle (°) Consumption (Watt) Input Voltage (V) IK Rate
82841(AS/H) 4*1W LED 8°/15°/25°/30°/45°/60° 4.4 DC24V/AC100-240V 09
82842(AS/H) 4*2W LED 8°/15°/25°/30°/45°/60° 8.5 DC24V/AC100-240V 09
82829(AS) 4*4W RGBW 4in1 LED 8°/15°/25°/30°/45°/60° 16.1 DC12V/DC24V 09
82828(AS/H) 2*6W COB LED 15°/25°/36°/60° 12.1 DC24V/AC100-240V 09

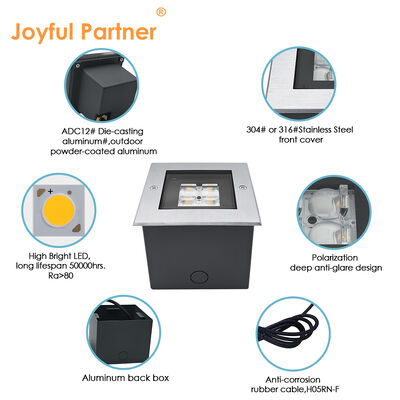

Material Specifications
  • Frame: 304/316 stainless steel trim. Square shape.
  • Housing: Aluminum body and heat sink, good heat performance.
  • Lens: Optical lens
  • Cover: 8mm thickness tempered glass cover.
  • LED Driver: Isolated constant current driver as standard, low voltage driver as option.
  • Light Source: High power Bridgelux LED chips, 3000-6500K or RGB color available
  • Screws: Stainless steel screws included.
  • Embedded Parts: ABS materials, High strength and corrosion resistance
  • Cable: Electrical cable with 0.5M length, it is ok to be with plug.
Installation Notes
  1. Must be installed by a licensed electrician (Installation instructions sheet provided in each product box).
  2. Made from 316 stainless steel for durability and corrosion resistance. A clear protective coating is applied for surface finish, which may peel over time in outdoor or high-pressure cleaning conditions.
  3. To maintain the IP rating please use circular cable in junction. For parallel and single connection we recommend using an appropriate IP68 connector.
  4. To avoid disappointment and warranty problems, please ensure the IP rating of the chosen product is relevant for the intended use.
Product Images
