LED Step & Wall Recessed Light 3W AC220V White Die-Cast Aluminum IP65

High-performance LED step and wall recessed lighting solution designed for outdoor applications with IP65 waterproof rating.

• Housing: Made of ADC12 die-casting outdoor powder coated aluminum
• Lens: Optical lens, efficiency ≥85%

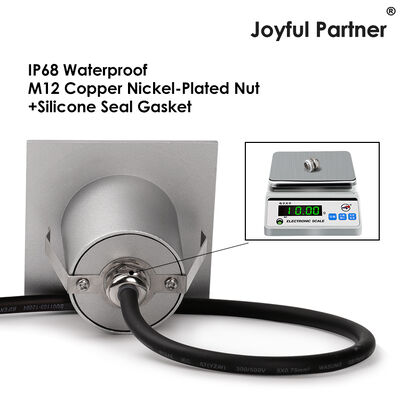

• Cable gland: M12 nickel coated copper
• Gasket: Tooling shaped seal
• LED: Epistar or CREE power LED, Ra>80
• PCB: Excellent heat conductivity aluminum, coefficient of heat conductivity ≥2.0w/mk
• Driver: Constant current output, single color LED=1-circuit output
• Operating temperature: -20℃ to 40℃
• Power cable: H05RN-F2*0.75mm² L=0.3m (low voltage) / H05RN-F3*0.75mm² L=0.3m (high voltage)

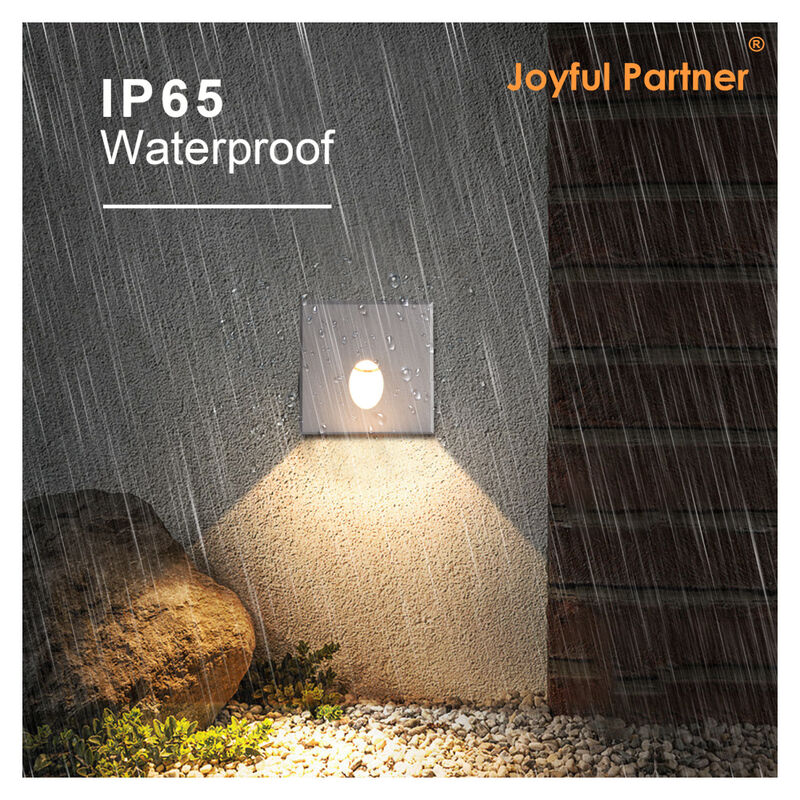

• IP65 waterproof rating for outdoor stair, step, corner, stairway, and park lighting applications
• Input Voltage options: 12V/24VDC or 100-240VAC
• IP65 rating with CE, ROHS certification
• Rated lifespan: over 50,000 hours
• Easy installation with clip mounting system
• Excellent heat conductivity aluminum with high efficiency constant current drivers
• Housing color options: Gray, Silver RAL9005, Matt black RAL9006, and custom colors

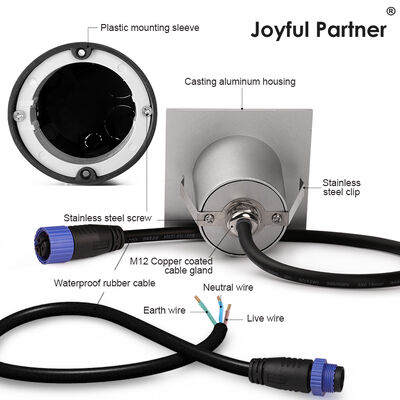

• Includes mounting sleeve

Our outdoor LED step lights are designed with flexibility in mind, making them suitable for various applications. You have the freedom to decide how you want to position them, allowing you to achieve the desired design for your indoor and outdoor space.

1. Prepare the LED light source board - Ensure all components are ready for assembly
2. Full inspection of the light source board - Check each board for defects to ensure quality
3. Connect the driver to the light source board - Secure proper electrical connections
4. Fix the light source board and install the lens - Ensure alignment and stability
5. Prepare the wiring - Cut and organize wires for assembly
6. Attach one end of the wires to the bottom cover - Ensure secure connection
7. Apply waterproof sealant to glass and silicone gasket - Guarantee a high-quality, watertight seal
8. Install the heat sink inside the lamp body using screws - Ensure proper thermal management
9. Connect the driver to the wiring - Complete the electrical assembly
10. Perform aging test on the finished product - Verify long-term performance and reliability
11. Package the product and inner box, conduct final quality inspection - Ensure the product meets all standards
12. Pack into outer cartons and apply shipping labels - Ready for delivery

JP Lighting 1*3w IP65 LED Recessed Wall Light for Canada stair, step, corner lighting in 2021. Widely used in parks, gardens, shopping malls, hotels, bridges, buildings and urban constructions in different countries and areas. Stable long-term and win-win cooperation with many branders and distributors in the field.

• Strict Quality Control: Each item undergoes at least 48 hours of aging tests and 24 hours of waterproof tests
• Ample Inventory: Large stock of branded LEDs and materials for wide range of product models
• Certifications: ISO 9001 certified factory verified by Alibaba
• Authoritative Approvals: CE, RoHS certifications with IP65, IP67, and IP68 waterproof test compliance
• Solid Partnerships: Long-term, win-win partnerships with industry brands and distributors
• Global Reach: Customers including engineering project clients and wholesalers worldwide

We provide comprehensive OEM and ODM services, allowing clients to customize LED wall lights according to their brand and project requirements. From design and material selection to production and packaging, our team ensures high-quality, reliable products tailored to your specifications. Whether you need unique colors, finishes, or lighting performance, we work closely with you to turn ideas into reality, supporting both small and large-scale projects with professional guidance and efficient manufacturing.
